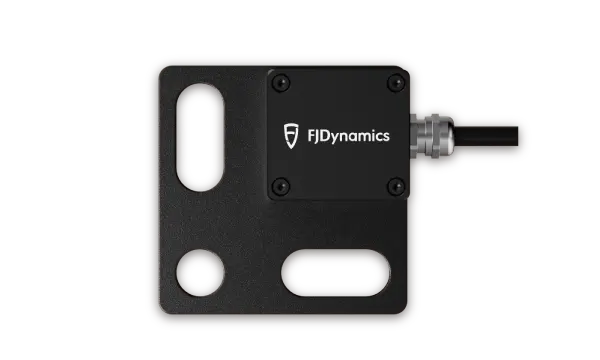

FJD Acre Recording Sensor

Become Dealer
Smart Action Detection
Non-Contact Angle Sensing
Industry-Grade Protection
Easy to Connect

Smart Sensing, Accurate Counting

By detecting the lift and drop of your implement, the FJD Acre Recording Sensor automatically starts and stops recording the areas you've worked. It helps you get accurate records of your acreage, so you don't miss any spots or count areas you didn't actually work in. This makes your job easier and more comfortable. It's also easy to install on many different guidance systems, helping you farm smarter and more efficiently.

Application Scenarios

Seeding

Record areas automatically when the seeder goes down, reducing missed spots and manual recording.

Tillage

Stop recording when the implement is raised, ensuring accurate and reliable coverage data.

Acre Recording Sensor

  • ​ Measurement Range
    ±1000 °/s

  • Static Attitude Accuracy (Roll/Pitch)
    0.1° RMS

  • Low-Dynamic Attitude Accuracy (Roll/Pitch)   0.5° RMS ​

  • Update Rate   500Hz/200Hz/100Hz (Optional) ​

  • Gyroscope Range   ±1000°/s (Optional ±250°/s) ​

  • Accelerometer Range   ±8G

  • Resolution   0.0076°/s (at ±250°/s range)

  • Supply Voltage
     5V

  • Power Consumption
     0.3W

  • Operating Temperature
     -20℃ to 70℃

  • Storage Temperature
      -40℃ to 85℃
