FJD 360 OmniView

guidance system,tractor guidance system,tractor gps,virtual terminal,steering system,gps guidance for tractors,agriculture gps systems,gps guidance system,gps systems for tractors,farming gps systems

Become Dealer
No Blind Spots
Wide Coverage
Safety Assurance
Smart Adaptability

360° View, Worry-Free Safety

FJD 360 OmniView is an advanced visual assistance system specifically designed for large farm machinery like high-horsepower tractors and combine harvesters. Utilizing multi-camera fusion technology, OmniView provides a complete 360° panoramic view of the surroundings without blind spots, greatly enhancing efficiency and safety in challenging situations like narrow-path driving, turning, reversing, and shed operations. With OmniView, you can work more efficiently and confidently in various difficult working conditions.

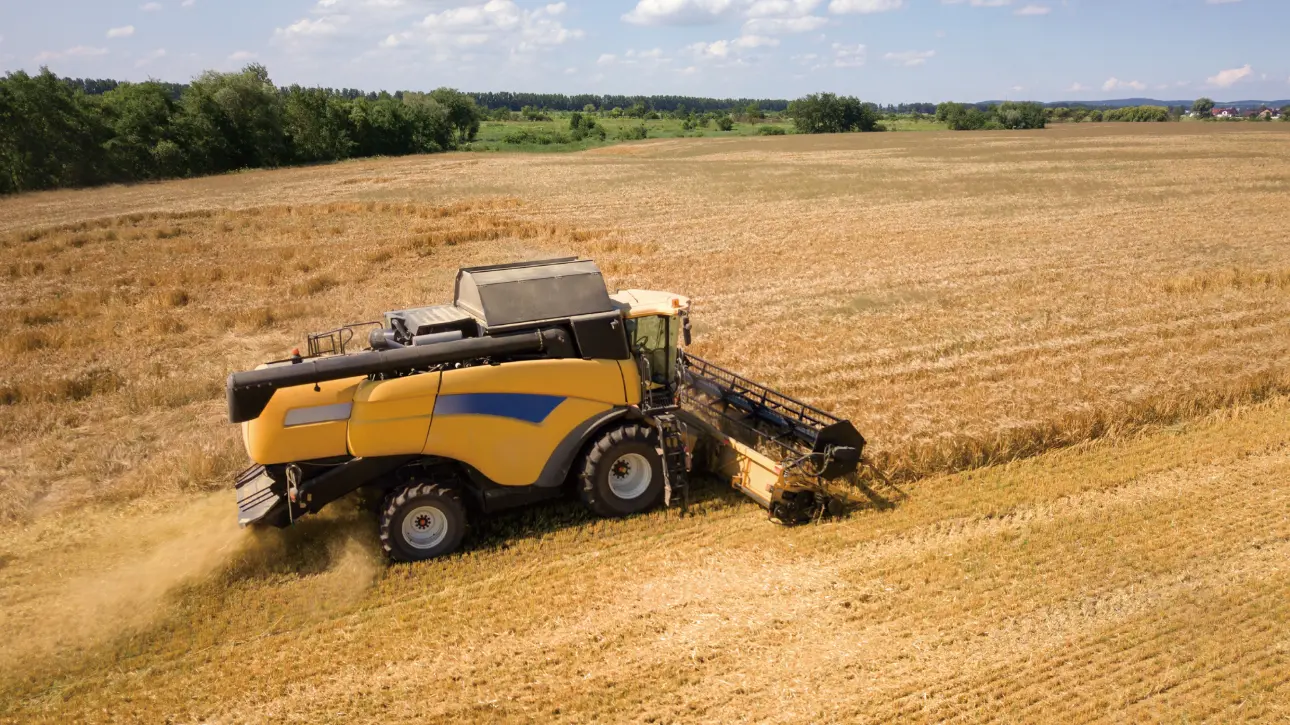

Compatible with Combine Harvester

Wide Coverage, Smart Adaptability

Come standard with one main unit box and four cameras, with the option to customize for up to 8 cameras for special requests. This enhanced setup increases the field of view while ensuring seamless image stitching and stable performance, with low delay.

Offer extensive compatibility with most large farm machinery from large tractors to combine harvesters. The easy-to-use interface also helps improve both efficiency and safety.
Compatibility with High-Horsepower Tractors

Specifications

Camera

  • Dimensions
    54 x 32 x 55 mm

  • Operating Voltage
    9-36V

  • Operating Temperature   -20℃ to 70℃

  • Resolution
      1280 x 720 pixels

  • Operating Humidity
     10% - 85%

Main Unit Box

  • Dimensions
    200 x 150 x 63mm

  • Operating Voltage
    9-36V

  • Operating Temperature   -20℃ to 70℃

  • Storage Temperature
      -40℃-85℃

  • IP Rating
     IPX7

  • List of Ports
    USB-C, GX12 4pin Aviation Male Connector x 4,

  • RJ45, WIFI Antenna, Power Supply(BATT+, GND)
