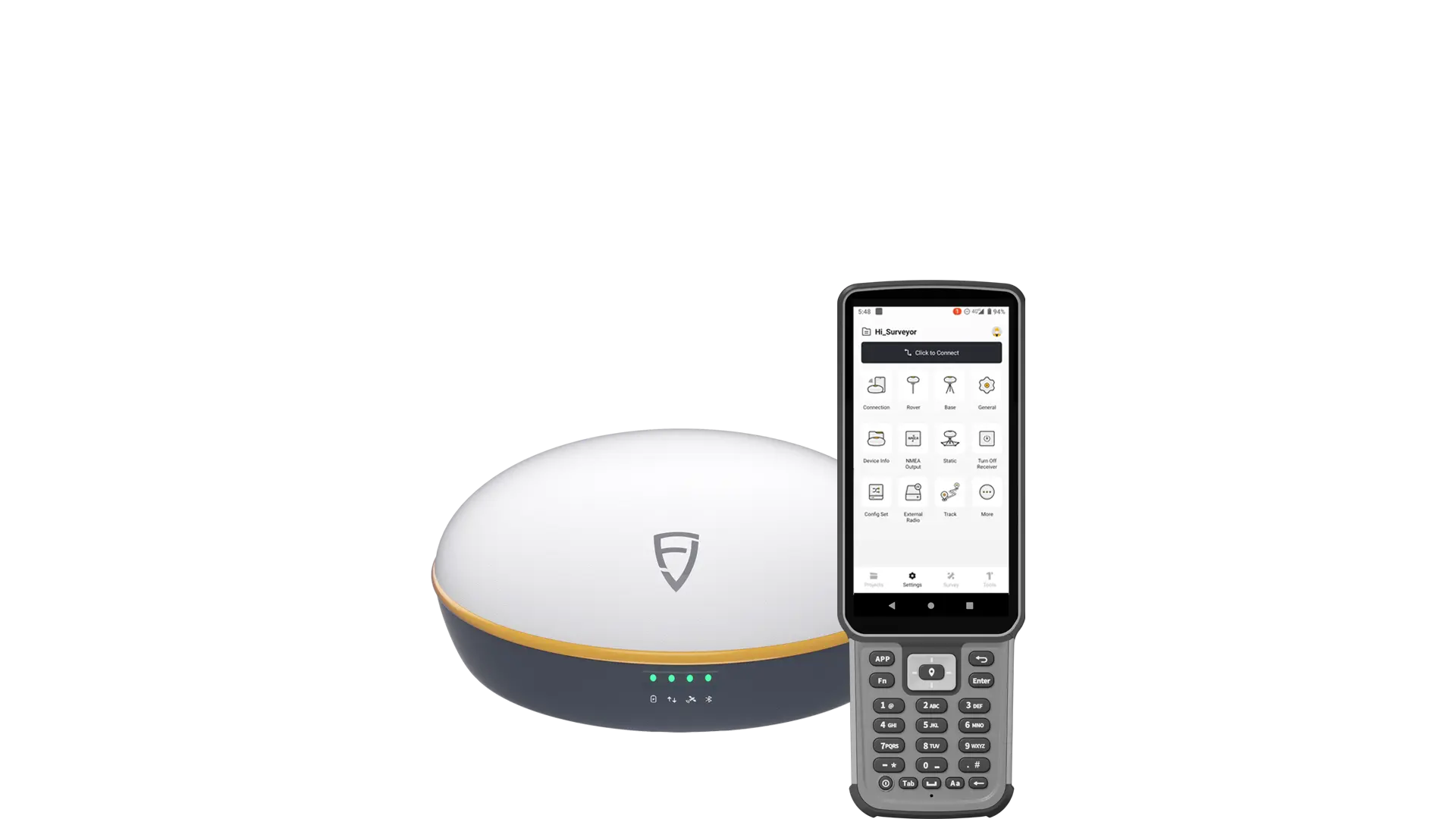

FJD TRION™ V1t Pro
RTK SYSTEM WITH LONG RANGE

Highlighted Features​

Supports LoRa, TRIMTALK,
TRIMMARK III, TT450, etc.
Adjustable Radio Power Output
Max. 5W Internal Radio
Low-Power Chipset
Large-Capacity Battery

HIGHER POWER, LONGER RANGE

The FJD Trion V1t Pro redefines rugged performance in tough environments with flexible 2W/5W power options. It dominates large, demanding worksites with a long probing range of up to 15 km. By integrating LoRa, TRIMTALK, TRIMMARK, TT450, etc., the V1t Pro delivers stable, interference-resistant performance in the field, empowering you to achieve peak productivity wherever your project takes you.


Pro Performance Without Premium Price

The V1t Pro is built for professionals who need reliability, precision, and range—not inflated price tags. With support for 1408 GNSS channels, high-precision IMU tilt compensation, adjustable radio output up to 15 km, and a long-lasting battery, it delivers everything you need to get the job done right. No gimmicks, no unnecessary features—just proven performance where it counts.

Adjustable Radio Power Output

Offer 2W/5W power options and up to 15 km probing range, helping you handle large hard-to-reach worksites.

Multiple Protocols Supported

Work with LoRa, TRIMTALK, TRIMMARK III, TT450S and etc., to provide a strong anti-interference performance under different conditions.

Low-Power Chipset & Large-Capacity Battery

Deliver extended field operation up to 10 hours as a base and 15 hours as a rover (typically), so you can work longer without interruption.

Accessories

For greater versatility, the V1t Pro pairs seamlessly with a suite of accessories, including controller and tablets for precise control, a high-power external radio for extended communication, and a cylindrical battery for longer run times. All are easy to mount and built to perform under pressure, giving your workflow with higher field-ready efficiency.

FJ-HPR 400A High-Power Radio

The FJ-HPR 400A is a high-power external radio transceiver built for the surveying and mapping industry. It offers up to 28W of transmission power and supports easy setup from an app. With an IP67 rating, it works smoothly for extended use and features ultra-low power consumption over long distances, making it a perfect choice for large-scale outdoor projects.

Cylindrical Battery

The cylindrical battery pairs seamlessly with tripods, enhancing your workflow with a simple setup. With a the same size as the straight mounting pole does, it also features a 5800 mAh battery and 12V DC voltage, it acts as a powerful working hours booster for the V1t Pro in outdoor projects, which can be used to extend the working hours of the V1t Pro for outdoor projects.

Controllers

The V1t Pro can be used with either a compact keyboard controller or a tablet controller—you can choose the one that best fits your working preferences and needs. Both controllers have powerful processors for smooth performance, responsive touchscreens, and fast speeds to help you work efficiently. The ambient-aware screens automatically adjust brightness, making them easy to see even in direct sunlight.

Specs Comparison




Product Name

E600

UA80

D10
Screen Size
5.5 Inch
8 Inch
10.1 Inch
CPU 2.0 GHz
2.2 GHz
2.0 GHz
Storage RAM: 4 GB, ROM: 64 GB
RAM: 6 GB, ROM: 128 GB
RAM: 6 GB, ROM: 128 GB
Battery Capacity 7700 mAh
8200 mAh
9000 mAh


Application Scenarios

Road Surveying
Construction
Precision Agriculture
Digital Machinery
Resource Exploration
Engineering Monitoring
