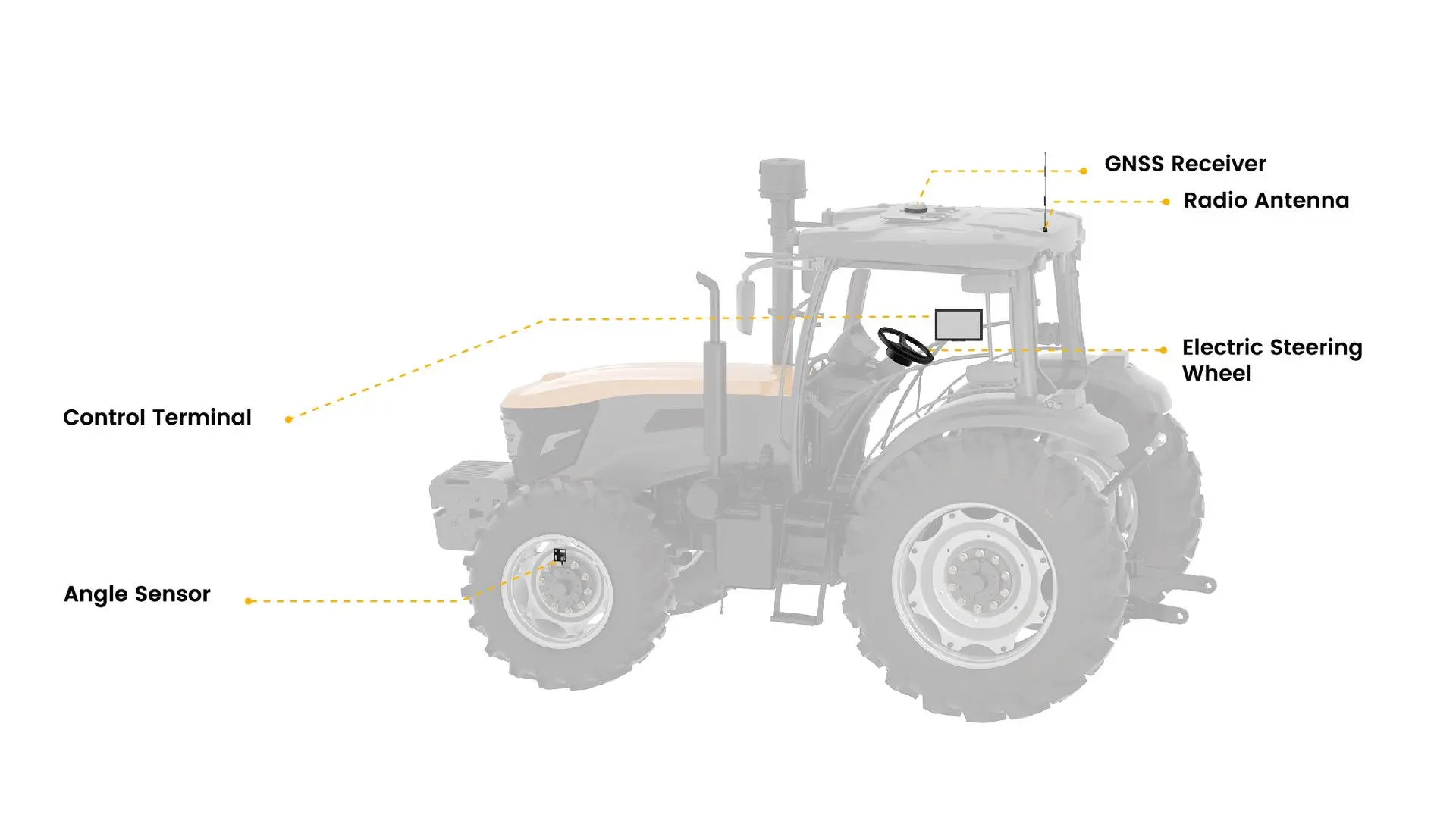

Standard Components

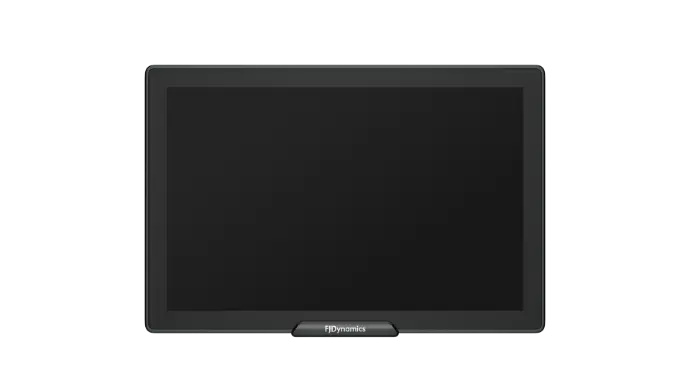

Control Terminal

  • Dimension
     s
     290×196×25 mm

  • Basic Configuration

     12.1-inch capacitive touch screen,

  • 1280×800 pixels, 500 nits backlight, speaker,

  • 4 GB RAM, 16 GB ROM,

  • Various communication interfaces.


  • Operating Voltage

    9–36V

  • Signals Received

    Radio, satellite, and 4G

  • Operating Temperature

    -20℃ to 70℃

  • Relative Humidity

     0%⁠–95%, at 40℃ (non-condensing)

  • Wireless Connectivity

    2.4 GHz frequency band;
    frequency range: 2402⁠–⁠2480 MHz,
    output power: 2.4 GHz 11n 14±2 dBm

  • IP Rating

    IP67

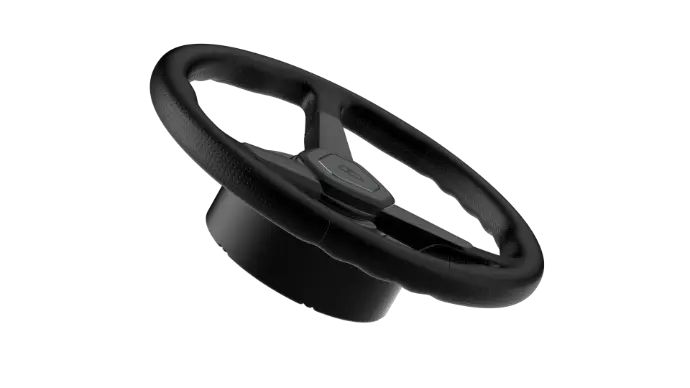

Electric Steering Wheel

  • Dimensions

    410×410×135 mm

  • Operating Voltage

    12V/24V

  • Peak Torque

    15 N·m (12V); 20 N·m (24V)

  •  IP Rating IP65

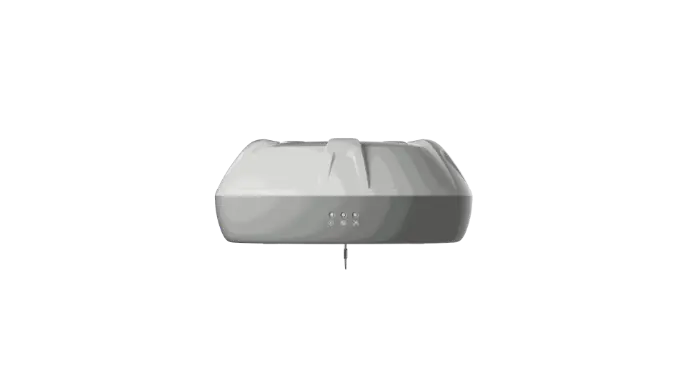

GNSS Receiver

  • Dimensions

    162×64.5 mm

  • Frequency Band

    GPS: L1C/A, L1C, L2P(W), L2C, L5;

  • GLONASS: L1, L2;

  • BDS: B1I, B2I, B3I, B1C, B2a;

  • Galileo: E1, E5a, E5b;

  • SBAS.

  • Operating Voltage

    9–36V

  • Operating Current

    ＜300 mA

  • Storage

    2G RAM, 8G ROM

  • IMU Accelerometer Accuracy

    0.5 mg

  • IMU Gyroscope Accuracy

    0.1°/s

  • Roll/Pitch Accuracy ±0.2°

  • Operating Temperature

      -20℃ to 70℃

  • Storage Temperature

    -40℃ to 85℃

  • IP Rating

    IP66
